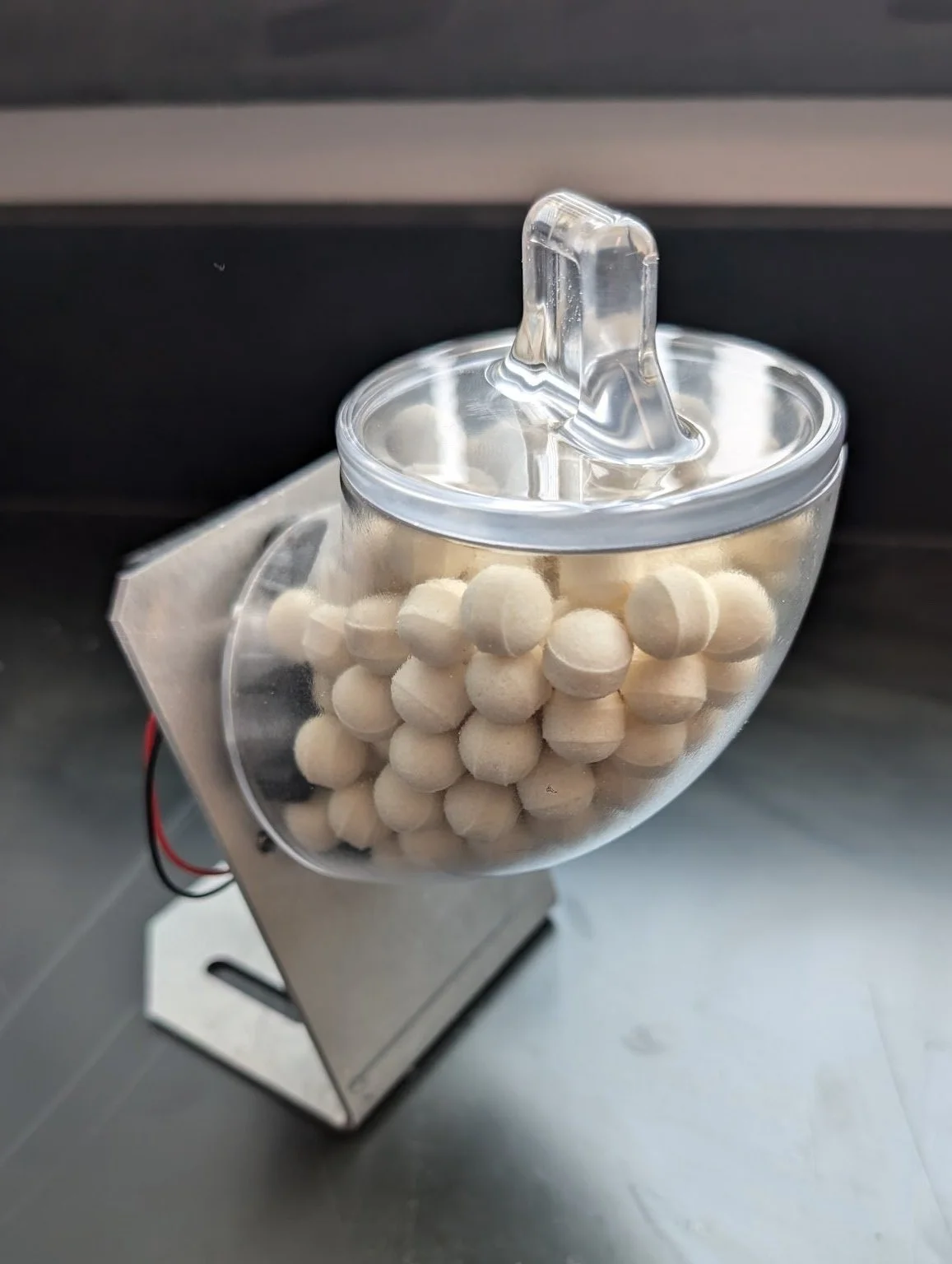

Dispenser 1 - Open-Source Pellet Dispenser

The pellet dispenser is a simple instrument used to dispense food pellets of varying sizes manually or automatically when connected to other devices.

Details

  • Capable of holding up to 140 12mm pellets

  • Manual or remote operation

  • Includes an IR feedback sensor to confirm pellet dispensation

  • Brackets can be modified for different mounting needs upon request

Technical Specifications

  • 12V DC Power

  • 3.3V DC input logic, pull high to dispense

  • 3.3V DC output logic, high indicates success

  • Input Connector (JST): 12V IN, Signal In, Signal Out, GND

Download Manufacturing and Assembly Files
Order pre-assembled
